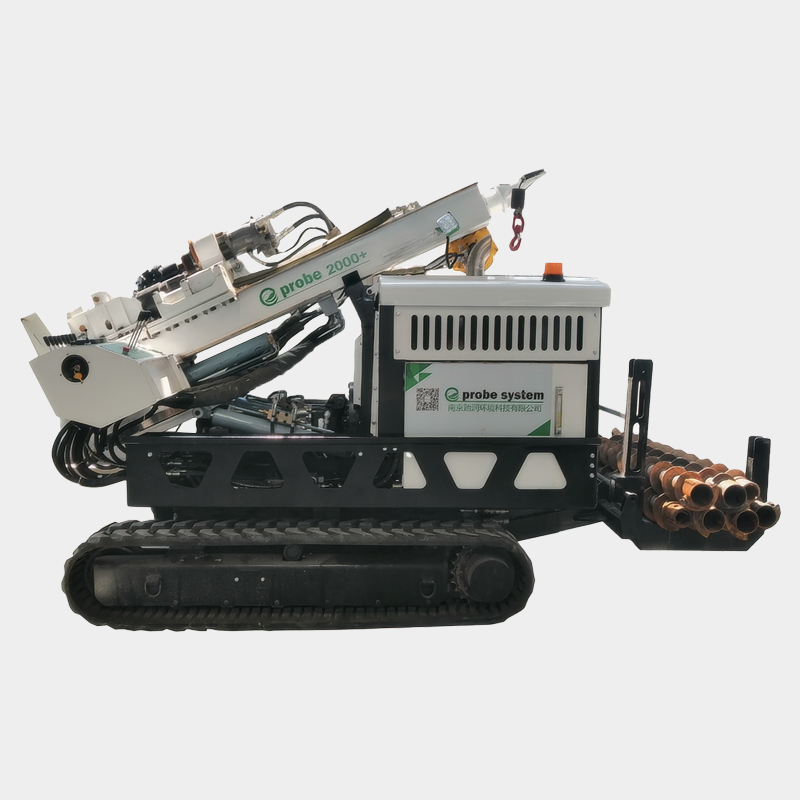

Direct Push Drill Rig EP2000+
▣ Product introduction
The drill rig EP2000+ is an all-in-one system for soil and groundwater sampling and site remediation. It is equipped with soil sampling, soil vapor sampling, in-situ direct push injection pump and hollow stem auger. This type of rig has sufficient power and low energy consumption, and has the functions of system fault diagnosis, satellite positioning and remote monitoring.
◈ Direct push soil sampling
◈ Hollow auger well construction
◈ Static pressure semi-closed pipe sampling/well construction
◈ In-situ reagent injection
◈ Direct pressure soil vapor sampling
◈ High-speed rotary coring
◈ High-frequency direct push semi-closed pipe sampling/well construction
◈ Ground/stratum crushing, drilling
◈ High frequency direct push semi-closed pipe advanced sampling/well construction
◈ Membrane interface survey (MIP)
◈ Direct pressure temporary rapid water extraction
◈ 0DEX synchronized with pipe drilling
▣ Technical Parameters EP2000+
Parameter Name | Parameter Value |
Stoke | 1800mm |
Weight | 4.65t |
Length (in folded state) | 3300mm |
Width | 1740mm |
Height (in folded state) | 2320mm |
Foot stroke | 800mm |
Stretch | 400mm |
Side swing (along the center line) | ±3° |
Pendulum (along the midpoint) | ±7.5° |
Pitch angle | -6°- +68° |
Rear hanging board bearing capacity | 800kg |
Walking speed | 0-8km/h |
Ground pressure | 0.39kg/cm2 |
Track width | 300mm |
Track ground length | 1840mm |
Continuous working torque of auger | 5000Nm |
Max. output torque | 8000Nm |
▣ Technical Highlights EP2000+
◈ Customized High Frequency Impact Hammer Sandvik
◈ Weichai Engine Deutz
◈ Integrated Operating Console
◈ Hydraulic Pump USA OILGEAR
◈ Integrated Mast System
◈ Two-speed Auger Power Head Rexroth
◈ Adaptive Electro-hydraulic System
◈ Customized Remote Controller Sweden CN3380
◈ Rear Bracket
◈ Side Bracket
